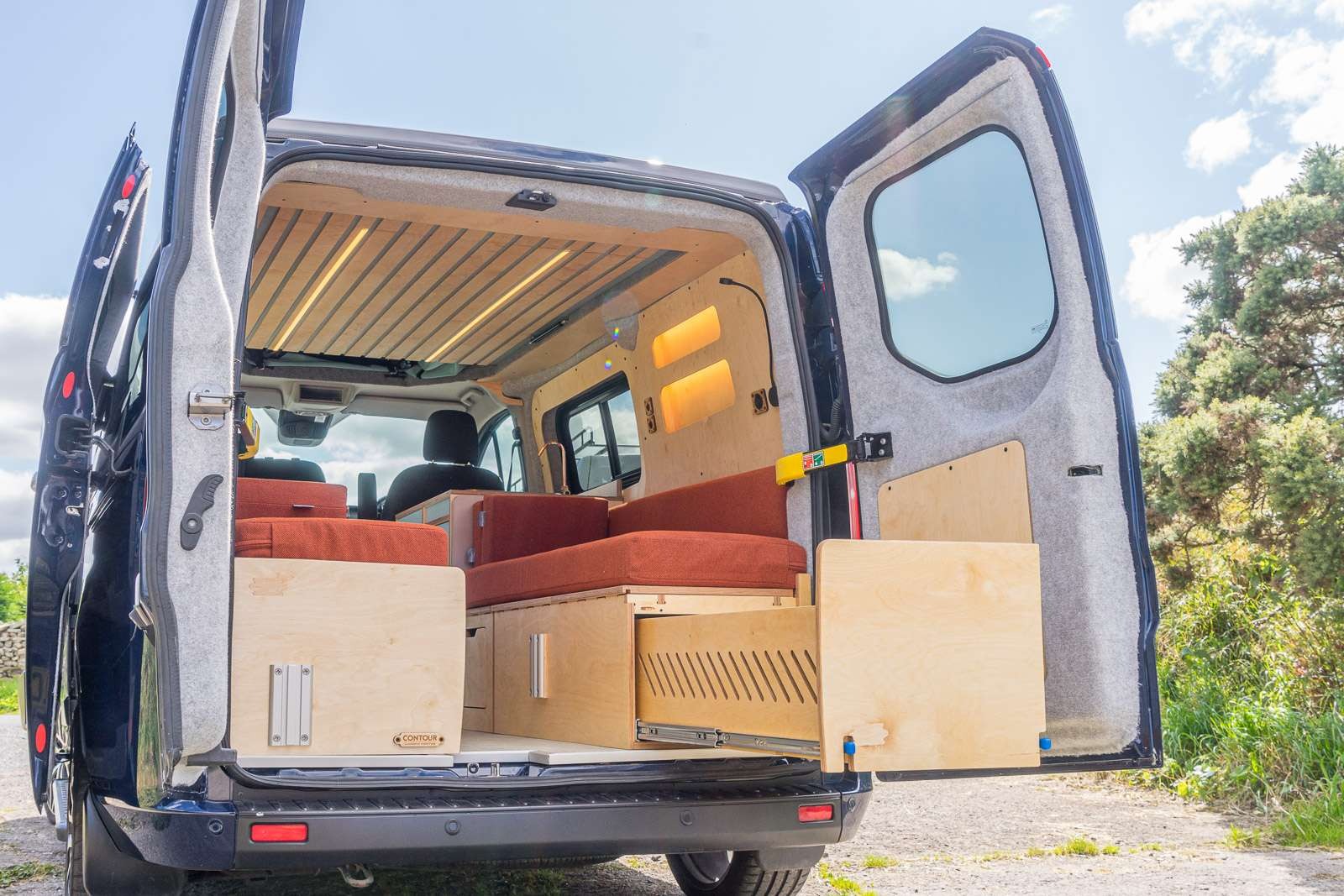

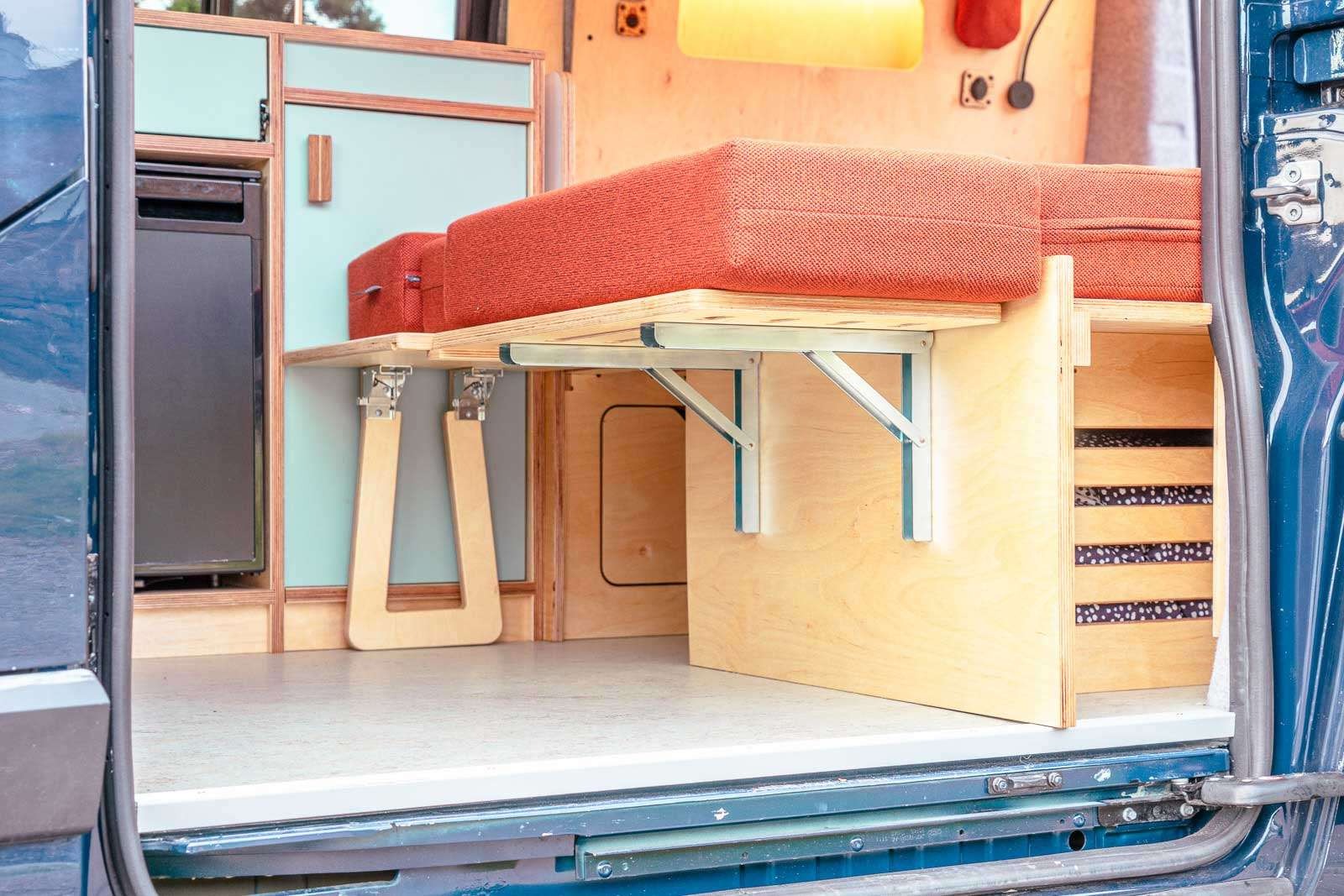

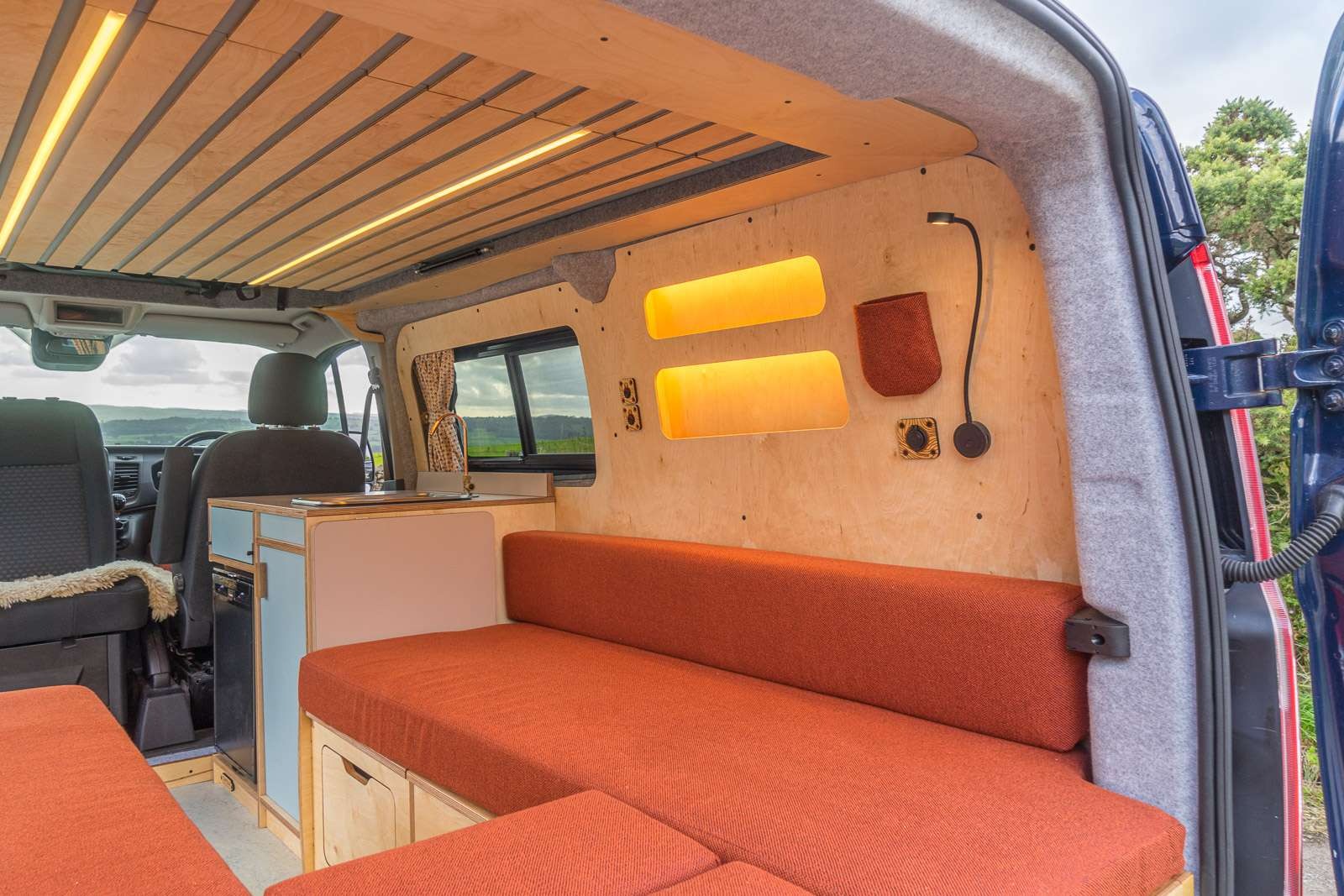

The Campervan "Zawn" U-Berth Bench and Bed Unit is designed for van lifers who want maximum flexibility, comfort and clever storage in one beautifully engineered layout. Whether you're building a weekend escape vehicle or a full-time camper conversion, this modular U-shaped campervan seating system transforms your interior into a highly adaptable living space.
Designed to fit both SWB and LWB vans, the Zawn layout offers four seating configurations, a full-width Super King bed conversion, and integrated storage solutions — all built from responsibly sourced FSC European birch plywood. Ultimate comfort, wherever you are.

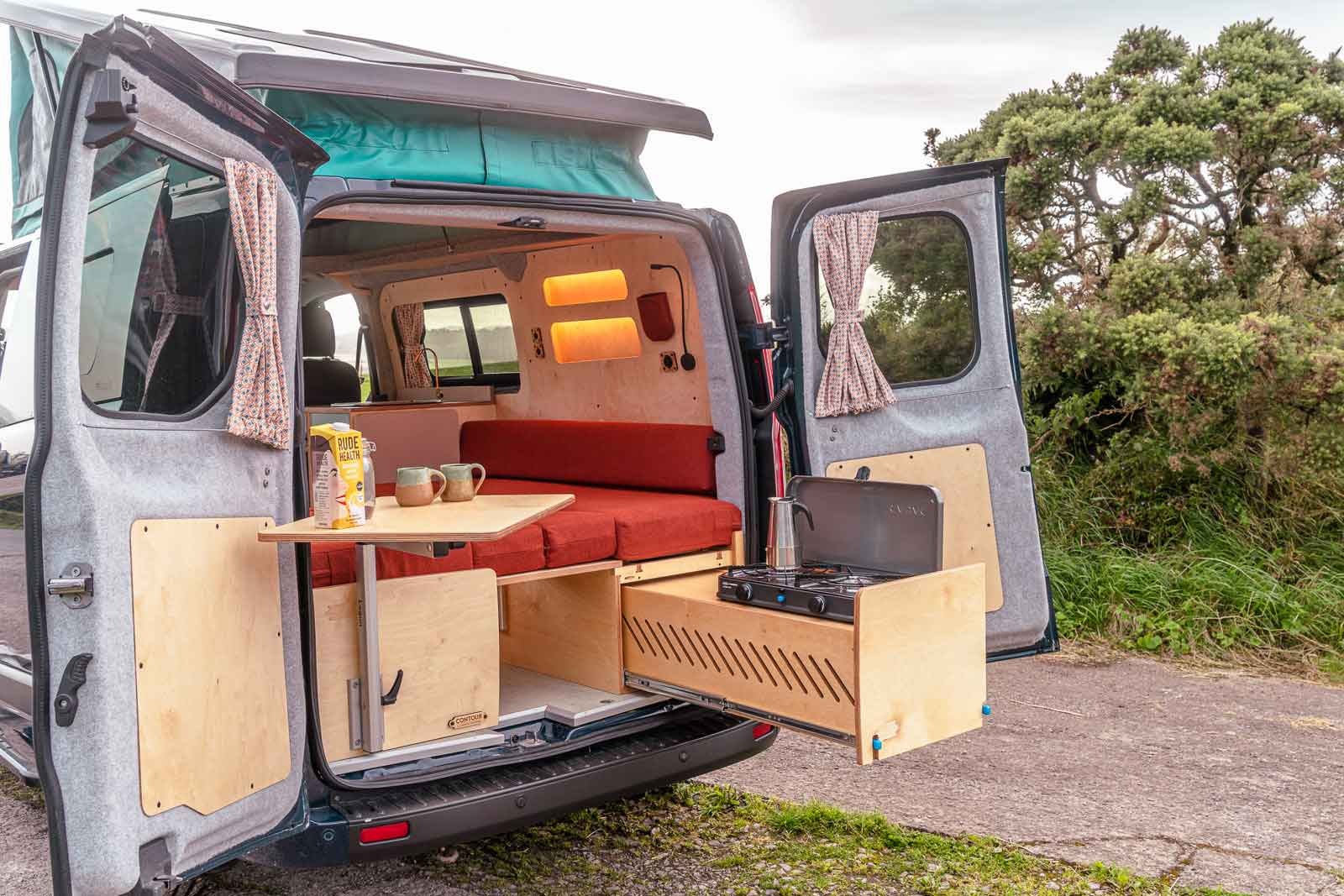

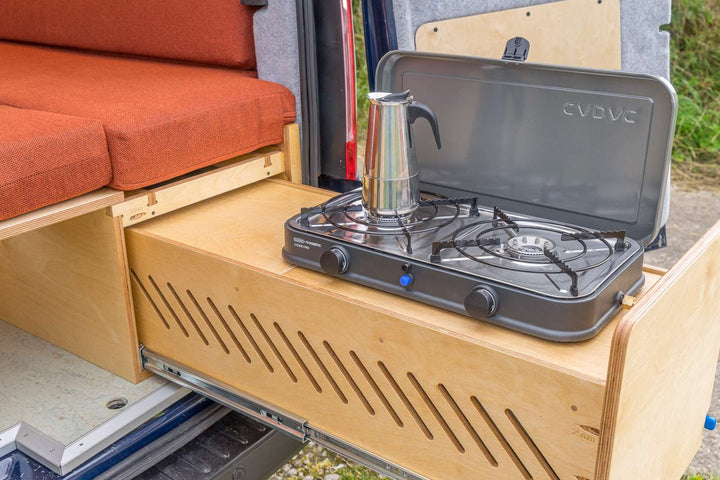

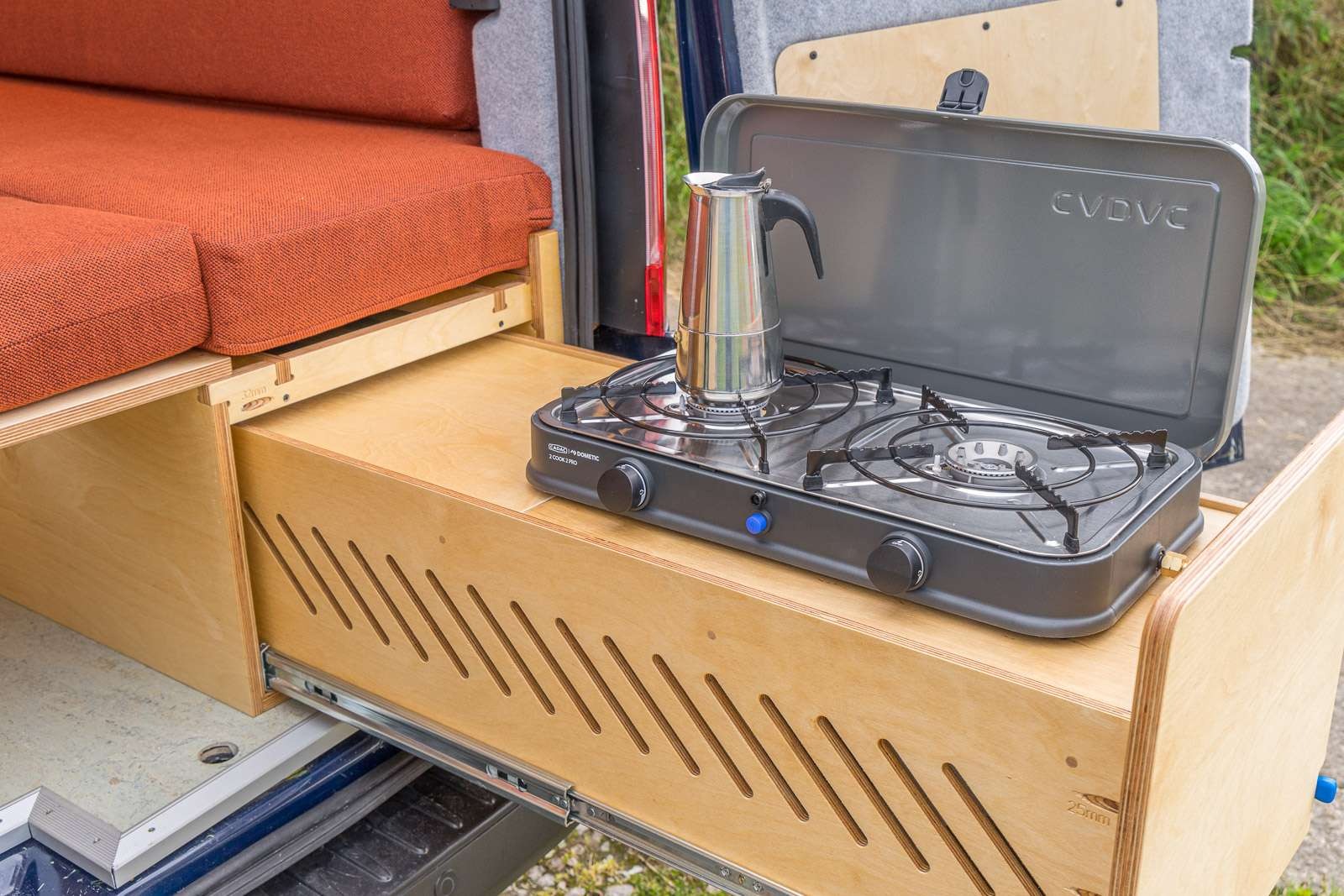

The Campervan "Zawn" U-Berth Bench and Bed Unit is designed for indoor-outdoor living. A huge pull-out drawer mounted on heavy-duty locking runners provides cavernous storage space. This drawer doubles as an outdoor table, allowing you to cook, prep or dine outside your van with ease. This smart multi-functional design reduces clutter and eliminates the need for additional furniture inside your van build.
Each unit can be personalised with custom upholstery options, allowing you to match your van’s interior aesthetic. The seating cushions feature supportive 100mm thick foam, providing comfort for both lounging and sleeping.uring durability for daily life on the road. This makes the Zawn unit ideal for full-time van life conversions as well as high-end bespoke campervan builds.
| Specification | Standard Width Version | Wide Version |
|---|---|---|
| Product Name | Campervan "Zawn" U-Berth Bench and Bed Unit | Campervan "Zawn" U-Berth Bench and Bed Unit |
| Bed Length (Converted) | 1800 mm (180 cm) | 1800 mm (180 cm) |
| Bed Width | Full internal van width (vehicle dependent) | Full internal van width (vehicle dependent) |
| Overall Maximum Length | 1695 mm | 1837 mm |
| Unit Depth | 720 mm | 720 mm |
| Unit Height | 465 mm | 465 mm |
| Width Between Wheel Arches | 1230 mm | 1520 mm |
| Seat Unit Width (Each Bench) | 738 mm | 738 mm |
| Drawer Depth | 250 mm | 250 mm |
| Foam Thickness | 100 mm | 100 mm |
| Layout Configurations | Twin Benches / Forward-U / Backwards-U / Benches with Coffee Table | Twin Benches / Forward-U / Backwards-U / Benches with Coffee Table |
| Drawer System | Heavy-duty locking runners | Heavy-duty locking runners |
| Table Function | Outdoor table & freestanding internal table | Outdoor table & freestanding internal table |
| Material | FSC European Birch Plywood | FSC European Birch Plywood |
| Finish | Supplied raw – requires sanding, oiling & scribing | Supplied raw – requires sanding, oiling & scribing |
| Compatibility | Suitable for SWB & LWB vans | Suitable for wider van platforms (e.g. Transit Custom) |
If you’re building a flexible campervan interior with maximum seating, clever storage and a full-width sleeping solution, the Campervan "Zawn" U-Berth Bench and Bed Unit offers unmatched versatility. Whether you're planning weekend adventures or long-term van life, this unit delivers comfort, storage and smart design in one complete solution.
